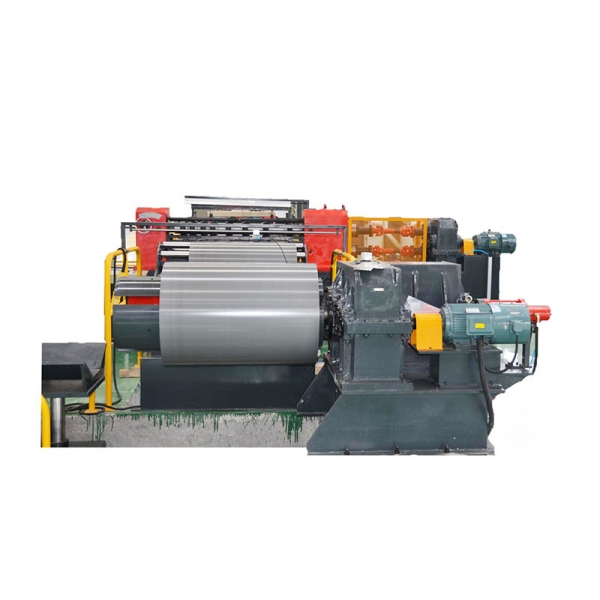

Electrical Silicon Steel Slitting Machine With High Speed And High Precision

Silicon steel is a very important electrical material used primarily as a magnetic material in motors, transformers, electrical appliances, and electrical instruments. The width of the silicon steel coil is usually 1250mm. Electrical silicon slitting machine is to cut the silicon steel coil into strips of various widths, and then rewind the strips into rolls for use in the next process.It is necessary machine for the transformer industry.

Get discounts：+86-18118862428

E-mail：emily@ncshears.com

Detail

Electrical Silicon Steel Slitting Machine With High Speed And High Precision

Description：
Silicon steel is a very important electrical material used primarily as a magnetic material in motors, transformers, electrical appliances, and electrical instruments. The width of the silicon steel coil is usually 1250 mm.Electrical steel slitting machine is to cut the silicon steel coil into strips of various widths, and then rewind the strips into rolls for use in the next process.The slitting line mainly includes loading car, uncoiler, slitter, tensioning, recoiler, discharging car, control cabinet etc.The production line uses PLC and touch screen control system, with a maximum working speed up to 120 - 150 m/min.It is necessary machine for the transformer industry.
Advantages of the Machine：
High level of cutting accuracy by means of high precision slitter
Low burr and low camber slitting process with high speed production
By means of electrical, pneumatic and hydraulic system, the machine has high automation
Thickness ranges between 0.18 and 0.5 mm

Optional configuration of scrap winder and hydraulic cutter

Technical Specifications:

Model	XE-ZJX-1250
Silicon steel coil width（mm）	1250
Silicon steel coil thickness(mm)	0.18–0.5
Width of slitting strips (mm)	Min. 40
Slitting burr (mm)	≤0.02
Slitting strip width precision(mm)	±0.1
Straightness deviation of each edge	≤0.2mm/2m
Number of slitting strip	Max. 10
Disc cutter outer diameter (mm)	Φ250
Disc cutter inner diameter (mm)	Φ125
Slitting speed (m/min)	Max. 80 or 120 or 150
Max coil weight (ton)	5 or 8 or 10
Recoiler max loading (ton)	5 or 8 or 10
Total Power(kw)	55
Weight(kg)	About 15000
Overall dimension（m）	About 15 x 8 (length x width)

Ruyi Transformer Equipments Manufacturer Co.,Ltd is Founded in 2010, is known as one of the leading China manufacturers and suppliers of electrical steel slitting machine with high speed and high precision. Equipped with a productive factory, we warmly welcome you to purchase electrical steel slitting machine with high speed and high precision with high precision and reliable performance with us. Expecting to be your long-term partner.
