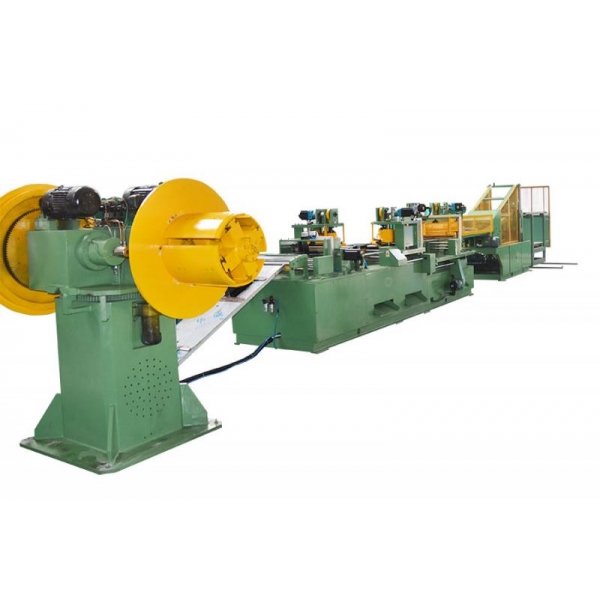

Two shears, two punches, center positioning, stepping cross-cutting line

Detail

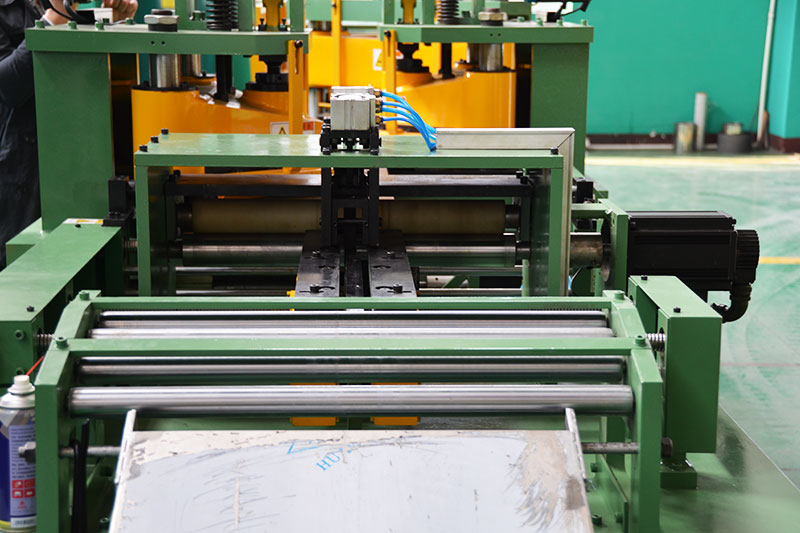

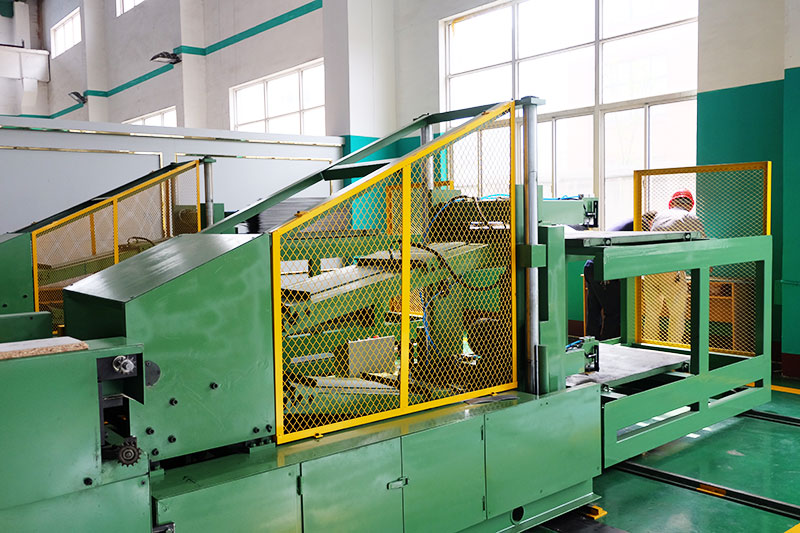

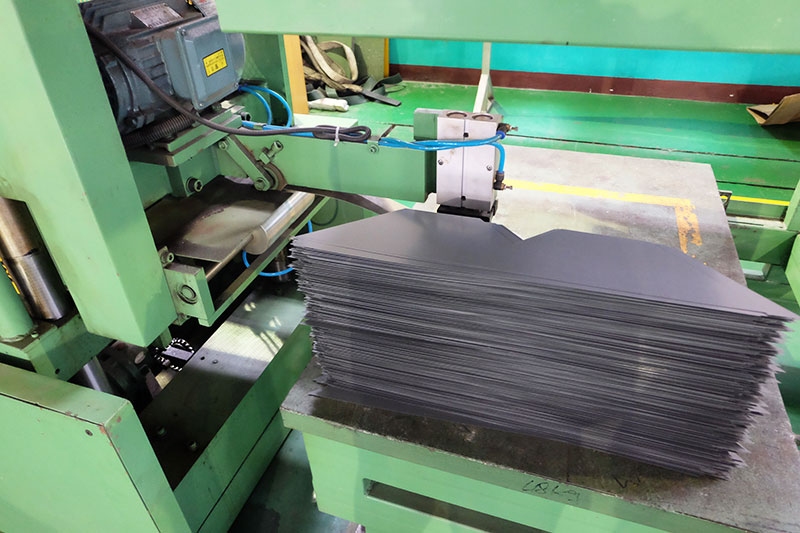

Two cut and two punch centralized positioning step-lap cut to length line has the following advantages:center positioning feeds, the feeding roller is not easy to wear and the quality is light, small inertia, high speed, feeding the material accurately. In the aspect of two “cut”, the cut 1 was fixed at 45 DEG and the cut 2 can switch between 90 and 135 DEG, it has easy to adjust the shear angle. The discharging machine makes the silicon steel sheet convenient to receive the material after the punching and cutting through the telescopic platform.

Project	XE-LL-400ZX
Cutting thickness	0.23-0.35
Cutting width	40-400
Cutting length	350-9999
Feeding speed	180m/min
Cutting burr	≤0.02
Cutting length accuracy	±0.1
Cutting angle accuracy	±0.025
Total motor power	24

Project	XE-LL-600ZX
Cutting thickness	0.23-0.35
Cutting width	40-600
Cutting length	350-9999
Feeding speed	180m/min
Cutting burr	≤0.02
Cutting length accuracy	±0.1
Cutting angle accuracy	±0.025
Total motor power	26
