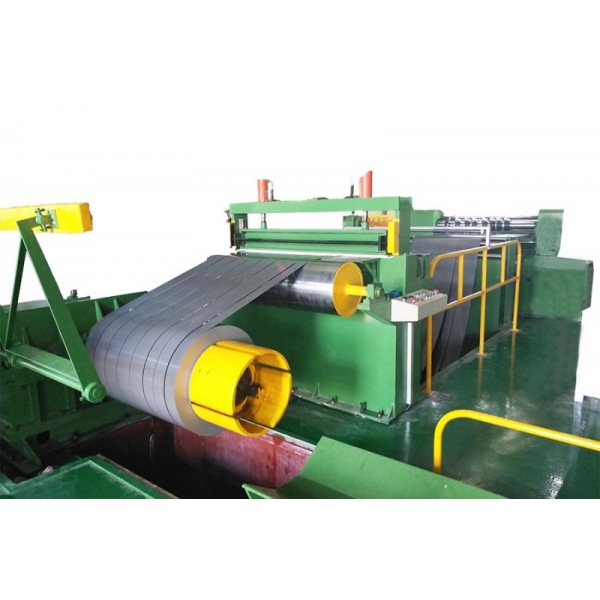

The slitting line for silicon steel strip, which cuts the coils of silicon steel strip into a certain width of the silicon steel strip, and then wind into the productive and productive and processing equipment according to a certain number of curly tension. It is widely used in food, packaging, building material, electrical and other metal processing industry.
|
Inner diameter of coil |
Ø500mm |
|
Width of coil |
200-1200mm |
|
Weight of coil |
5T |
|
Thickness of sheet |
0.23-0.5mm |
|
Width of sheet |
40-1200mm |
|
Shearing speed |
0~120m/min |
|
Straightness deviation of each edge |
0.1mm/m |
|
Strip with accuracy |
±0.1mm |
|
Installed power |
55KW |
