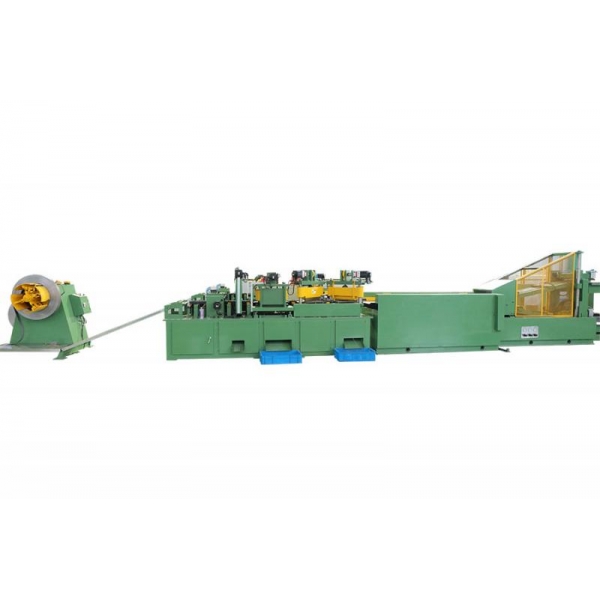

Two cutting and two punching shearing machine with step-lap is an automatic production line for the silicon steel sheet shearing, consists of the following parts:Uncoiler, Feed buffer, Feeder, Punch parts, Shear parts, Conveyor, Material machine, Pneumatic system, Electronic control system.
300 two-cut two-punch stepping cross-cutting line
|
Project |
XE-LL-300Z |
|
Cutting thickness |
0.23-0.35 |
|
Cutting width |
40-300 |
|
Cutting length |
350-9999 |
|
Feeding speed |
180m/min |
|
Cutting burr |
≤0.02 |
|
Cutting length accuracy |
±0.1 |
|
Cutting angle accuracy |
±0.025 |
|
Total motor power |
20 |
|
Project |
XE-LL-400Z |
|
Cutting thickness |
0.23-0.35 |
|
Cutting width |
40-400 |
|
Cutting length |
350-9999 |
|
Feeding speed |
180m/min |
|
Cutting burr |
≤0.02 |
|
Cutting length accuracy |
±0.1 |
|
Cutting angle accuracy |
±0.025 |
|
Total motor power |
22 |
