The device add the function of punching on the basic of the two cutting and one punching, especially for dry-type transformer.

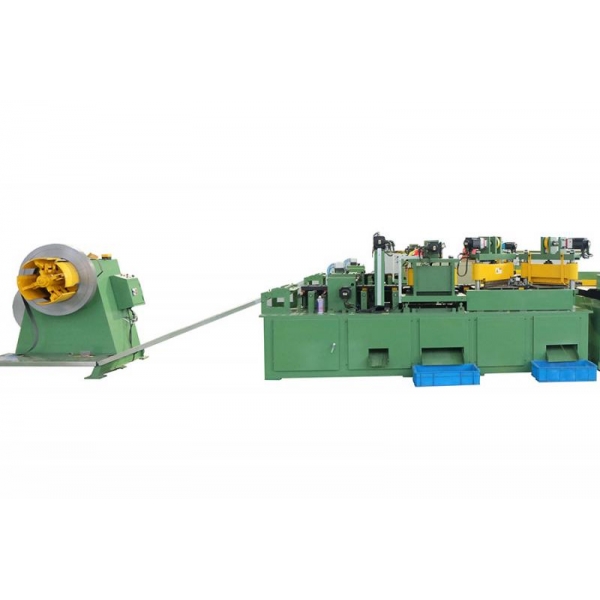

300 two-cut two-punch cross-cutting line (ordinary type)
|
Project |
XE-LL-300 |
|
Cutting thickness |
0.23-0.35 |
|
Cutting width |
40-300 |
|
Cutting length |
350-9999 |
|
Feeding speed |
180m/min |
|
Cutting burr |
≤0.02 |
|
Cutting length accuracy |
±0.1 |
|
Cutting angle accuracy |
±0.025 |
|
Total motor power |
15 |
|
Project |
XE-LL-400 |
|
Cutting thickness |
0.23-0.35 |
|
Cutting width |
40-400 |
|
Cutting length |
350-9999 |
|
Feeding speed |
180m/min |
|
Cutting burr |
≤0.02 |
|
Cutting length accuracy |
±0.1 |
|
Cutting angle accuracy |
±0.025 |
|
Total motor power |
15 |
