Two-cut and one-punch cross-cutting line

Detail

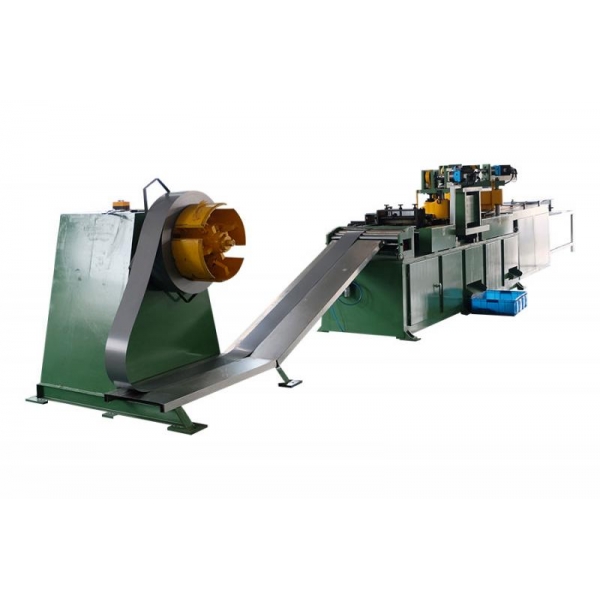

The CNC traverse cutting line of two cutting and one punching is full electric cutting line. It can process the side of the transformer core, yoke, medium column piece through safe, efficient and accurate.

300 type two shears and one punch CNC cross-cutting line

Project	XE-X-300
Cutting thickness	0.23-0.35
Cutting width	40-300
Cutting length	350-9999
Feeding speed	180m/min
Cutting burr	≤0.02
Cutting length accuracy	±0.1
Cutting angle accuracy	±0.025
Total motor power	10.5

400 type two shears and one punch CNC cross-cutting line

Project	XE-X-400
Cutting thickness	0.23-0.35
Cutting width	40-400
Cutting length	350-9999
Feeding speed	180m/min
Cutting burr	≤0.02
Cutting length accuracy	±0.1
Cutting angle accuracy	±0.025
Total motor power	10.5

Project	XE-X-600
Cutting thickness	0.23-0.35
Cutting width	60-600
Cutting length	350-9999
Feeding speed	180m/min
Cutting burr	≤0.02
Cutting length accuracy	±0.1
Cutting angle accuracy	±0.025
Total motor power	12
